Graphical VMs and OCR

Let's test something with optical character recognition (OCR) in a graphical VM.

For more general information about screenshots and OCR refer to the features section

Run this example test yourself

To run this test directly from the example repository, run:

Interactive with graphicsNon-interactive

nix run github:applicative-systems/nixos-test-driver-manual#test-browser.driverInteractive

Then enter run_tests() in the interactive terminal.

You will be able to see the graphical desktop and watch the test happening.

nix build -L github:applicative-systems/nixos-test-driver-manual#test-browser

In this scenario, we define a machine server that serves the standard Apache HTTP server "It works!" page. On the second machine, client, we run Mozilla Firefox to display this page and test if the text is really visible on the graphical desktop. In the end, we perform a screenshot:

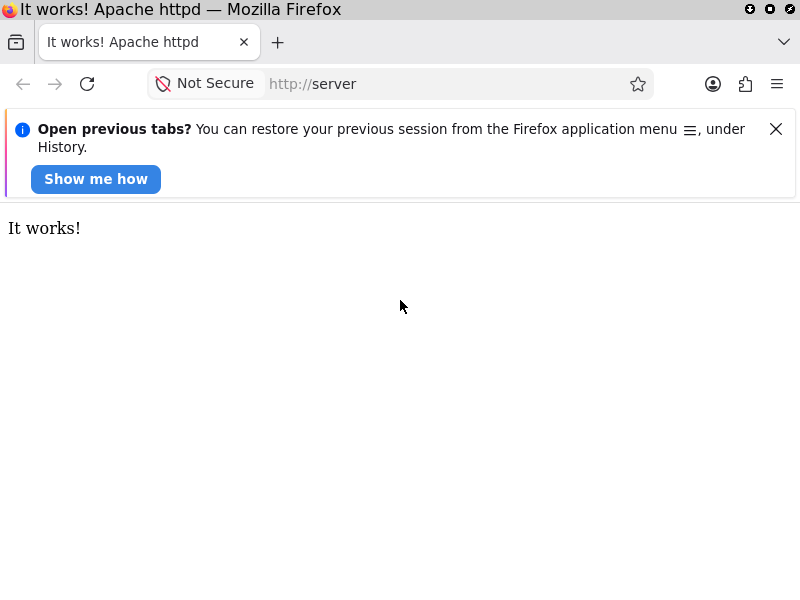

The screenshot at the end of the test

browser.nix

{
  name = "Browser test";
  globalTimeout = 500;

  enableOCR = true; # (1)

  nodes = {
    server = {
      services.httpd.enable = true;
      networking.firewall.allowedTCPPorts = [ 80 ];
    };
    client =
      { pkgs, modulesPath, ... }:
      {
        imports = [
          (modulesPath + "/../tests/common/x11.nix") # (2)
        ];

        programs.firefox.enable = true;

        environment.systemPackages = [
          pkgs.xdotool
        ];

        virtualisation.resolution = {
          # (3)
          x = 800;
          y = 600;
        };
      };
  };

  testScript = ''
    start_all()

    server.systemctl("start network-online.target")
    client.systemctl("start network-online.target")
    server.wait_for_unit("network-online.target")
    client.wait_for_unit("network-online.target")

    server.succeed("ping -c 1 client")
    client.succeed("ping -c 1 server")

    client.wait_for_x()

    client.screenshot("empty-icewm-desktop")

    with subtest("open and close firefox"):
      client.succeed("xterm -e 'firefox about:welcome' >&2 &")
      client.wait_for_window("Firefox")
      client.sleep(5)
      client.succeed("xdotool key ctrl+q")
      client.wait_for_text(".uit .irefox")
      client.succeed("xdotool key space")
      client.sleep(2)

    with subtest("open website on server"):
      client.succeed("xterm -e 'firefox http://server' >&2 &")
      client.wait_for_window("Firefox")
      client.sleep(2)
      client.screenshot("it-works")

      screen_content = client.get_screen_text()
      t.assertIn("It works!", screen_content, "It works! page is on screen")
  '';
}

1. Enabling OCR

   This setting adds tesseract and imagemagick to the test driver closure. It is not enabled by default to reduce the closure for non-graphical tests, which are the majority.

2. Configuring the desktop

   This profile is commonly used among graphical tests in nixpkgs and configures a small desktop environment with auto login.

   Importing this file is not mandatory - we can always configure this ourselves.

3. Resolution settings

   We reduce the display resolution to result in fewer pixels, which in turn reduces the resource usage of the Tesseract OCR analysis.

We use the following specialized graphical machine methods on the client:

Method	Description
client.wait_for_x()	Blockingly wait for the X server to become available
client.wait_for_window(<string: window title>)	Blockingly wait for a window to show up
client.screenshot(<string: image base name>)	Create a plain screenshot and store it in the output folder of the test derivation
client.get_screen_text()	Perform OCR on a fresh screenshot and return all recognized text snippets as a string
client.wait_for_text(<regex: text to wait for>)	Blockingly wait for a text snippet to appear on the screen

This list is not complete. For more details and methods, refer to the official manual.
